V73263
IN STOCK
Volume Pricing
| 1 | £31.44 / M |
| 76 | £30.04 / M |
| 152 | £28.76 / M |
| 305 | £27.59 / M |
| 762 | £26.50 / M |
Inventory Location
| Arizona | 34.14 M |
| Chihuahua | 0 M |
| Gelnhausen | 1725.78 M |
| Mexicali | 0 M |
| Queretaro | 0 M |
| Swindon | 0 M |
| Tennessee | 2793.19 M |
| Texas | 0 M |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Item Extra Description | V73263 - LIGHTWEIGHT 75 OHM COAXIAL CABLE |
| Item Description | The PIC V73263 Lightweight 75 Ohm Coaxial Cable is engineered for high-definition video transmission with superior shielding and low signal loss. Designed with a durable ETFE jacket and RoHS compliance, this aerospace-grade cable meets FAA flammability st |
| Price Unit | MFT |
| Manufacturers | PIC Wire & Cable |
| Manufacturer Part Number | V73263 |
| Capacitance | 16 |
| Overall Diameter | 0.13 |
| Voltage Rating | 2000 |
| Velocity of Propigation (VP) | 80 |
| Manufacturer | PIC |
| Weight | 1.5 |
| NSN | 6145-01-629-8226 |
| Dielectric | FEP |
| Outer Shield | Tin-Plated Copper Braid |
| Jacket Type | Extruded ETFE, White (Laser Markable) |
| Inner Layer | �FEP, White |
| Impedance | 75 |
| Temp | -55 |
| OuterJacket | 14 - Extruded White ETFE |
| Shield | Silver-Plated Copper Helical Strip |
| Conductor Count | 2 |
| Center Conductor | Silver Plated Copper |
| Min Temp | -55 |
| Max Temp | 150 |

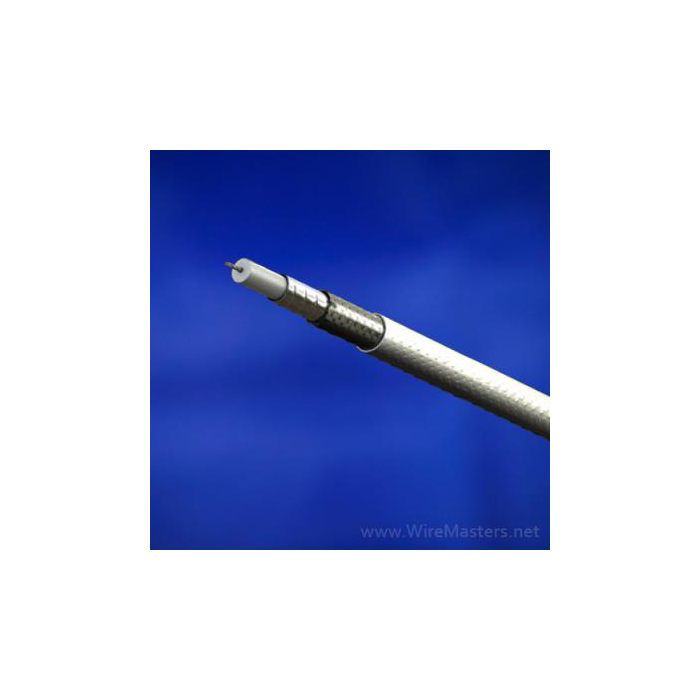

PIC V73263 Lightweight 75 Ohm Coaxial Cable
The PIC V73263 is a high-performance, lightweight coaxial cable designed for precision in high-definition digital video applications. With advanced shielding and superior materials, this cable ensures low signal loss and reliable transmission for aerospace and defense industries.
Key Features:- High-Definition Performance:
- Ideal for SMPTE standards such as HD-SDI, 3G-SDI, and beyond.
- Low attenuation and VSWR characteristics ensure crystal-clear video transmission.
- Durable Construction:
- Silver-plated copper conductor for enhanced conductivity.
- Double shielding with a helically-wound silver-plated copper strip and tin-plated copper braid for superior shielding effectiveness (-110 dB).
- Flexible and Lightweight:
- ETFE jacket for abrasion resistance and laser-markable for easy identification.
- Lightweight design makes it easy to install in tight spaces.
- RoHS Compliant
- FAA Flammability Standards (FAR Part 23 & 25)
- Skydrol Resistant: Perfect for harsh aerospace environments.
- Impedance: 75 ohms
- Operating Temperature: -55°C to +150°C
- Outer Diameter: 0.13 in (3.18 mm)
- Transmission Length: Up to 125' for HD-SDI, 85' for 3G-SDI, and 80' for 12G-SDI applications.
Ensure reliable performance in demanding environments with the PIC V73263 Lightweight 75 Ohm Coaxial Cable, built to meet the toughest standards in aerospace and defense.
