RCN9121
IN STOCK
Volume Pricing
| 1 | £182.60 / M |
| 76 | £174.48 / M |
| 152 | £170.69 / M |
| 305 | £163.58 / M |
| 762 | £160.24 / M |
Inventory Location
| Arizona | 6 M |
| Gelnhausen | 0 M |
| Mexicali | 0 M |
| Queretaro | 0 M |
| Swindon | 0 M |
| Tennessee | 36 M |
| Texas | 1581 M |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Price Unit | FT |
| Item Extra Description | RCN9121 HDMI (2.0) |

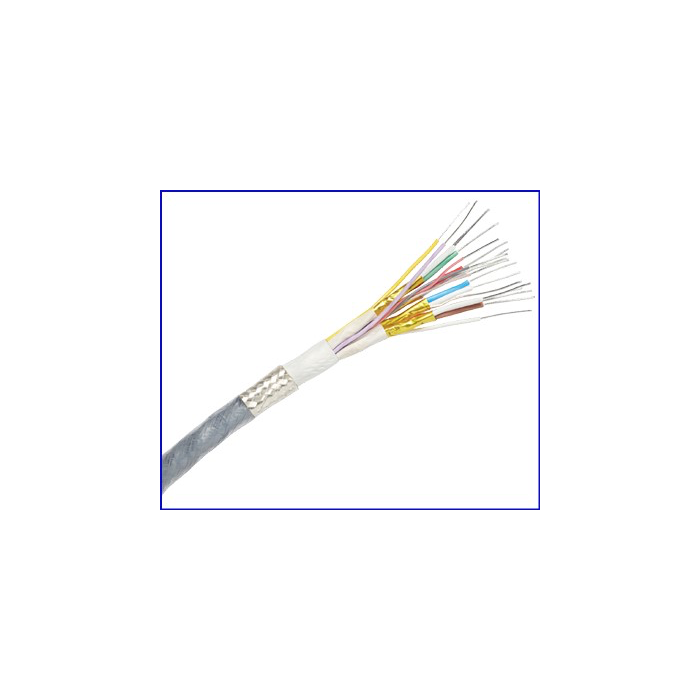

| Item Description | RCN9121 HDMI (2.0) Cable, 26 (19/38); 28 (19/40) gauge, operating temperature -65 to 200 C, Max. Diameter 0.26 inches. |
| Manufacturers | W. L. Gore & Associates |
| Manufacturer Part Number | RCN9121 |
| Gauge | 26 |
| Max Temp | 200 |
| Minimum Bend Radius | 2X |
| Weight lbs/1000 ft | 5.2 |
| Impedance | 100 |
| Manufacturer | WL Gore |
| Temp | 200 |
| Overall Diameter | 6.6 |
| Voltage Rating | 150 |
| Weight | 7.75 |
| Insulation | Wall Engineered Fluoropolymer, Grey |
| Shield | Aluminum Kapton |
| Inner Conductor Material | Silver-Plated Copper Alloy |
| Color | Gray |
| Cable Type/Protocol | HDMI (2.0) |
Gore’s cable bundles support 4K (2160p) video resolution, which is 4 times the clarity of 1080p for a richer viewing experience on cockpit and cabin displays. They provide outstanding signals for high-speed data transmission up to 18 Gb over the aircraft’s lifetime (Table 1). Passengers and flight crews can view IFE and critical information on crystal clear, high definition aircraft displays. Also, Gore’s low-weight construction enables a smaller cable diameter that increases flexibility with a tighter bend radius for less complicated routing in tiny spaces of new and existing aircraft
