DXN2603
IN STOCK
Volume Pricing
| 1 | Ā£29.21 / M |
| 76 | Ā£27.91 / M |
| 152 | Ā£27.30 / M |
| 305 | Ā£26.17 / M |
| 762 | Ā£25.63 / M |
Inventory Location
| Arizona | 0 M |
| Gelnhausen | 0 M |
| Swindon | 0 M |
| Tennessee | 0 M |
| Texas | 8726 M |
Disclaimer
Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.
| Price Unit | MFT |
| Item Extra Description | DXN2603 | GOREĀ® Shielded Twisted Pair Cables |
| Item Description | Discover the unparalleled performance of the GOREĀ® DXN2603 Shielded Twisted Pair Cable, expertly crafted for the demanding environments of aerospace and defense. This premium cable is engineered to ensure optimal signal integrity and high-speed data trans |
| Manufacturers | W. L. Gore & Associates |
| Manufacturer Part Number | DXN2603 |
| Gauge | 26 |
| Max Temp | 200 |
| Cap. pF/Ft | 13 |
| Minimum Bend Radius | 12.6 |
| Vp % | 80 |
| Weight lbs/1000 ft | 8.6 |
| Impedance | 100 |
| Manufacturer | WL Gore |
| Conductor Count | 1 Shielded Pair |
| Temp | 200 |
| Min Operating Temperature | -55 |
| Overall Diameter | 0.1 |
| Weight | 0.86 |
| Insulation | Engineered Fluoropolymer |
| Inner Conductor Material | Silver-Plated Copper Alloy |
| Color | White (Laser Markable) |
| Cable Type/Protocol | Shielded Twisted Pair |
Introducing the GOREĀ® DXN2603 Shielded Twisted Pair Cable: Precision Engineered for Optimal Performance
Elevate your aerospace and defense applications with the cutting-edge GOREĀ® DXN2603 Shielded Twisted Pair Cable, meticulously designed to meet the rigorous demands of high-speed data transmission. As part of W. L. Gore & Associates' commitment to innovation and quality, the DXN2603 represents the pinnacle of cable technology, offering unparalleled performance, durability, and reliability.
Key Features and Benefits
- Superior Electrical Performance: With an impedance of 100Ā±10 Ī© measured differentially and typical attenuation rates of 9.4 dB at 100 MHz, 13.8 dB at 200 MHz, 21.5 dB at 500 MHz, and 31.2 dB at 1 GHz, the DXN2603 ensures exceptional signal integrity for data speeds up to 1 GHz. The nominal time delay of 1.24 nSEC/FT and a velocity of propagation of 80% underscore its efficiency in critical communication links.

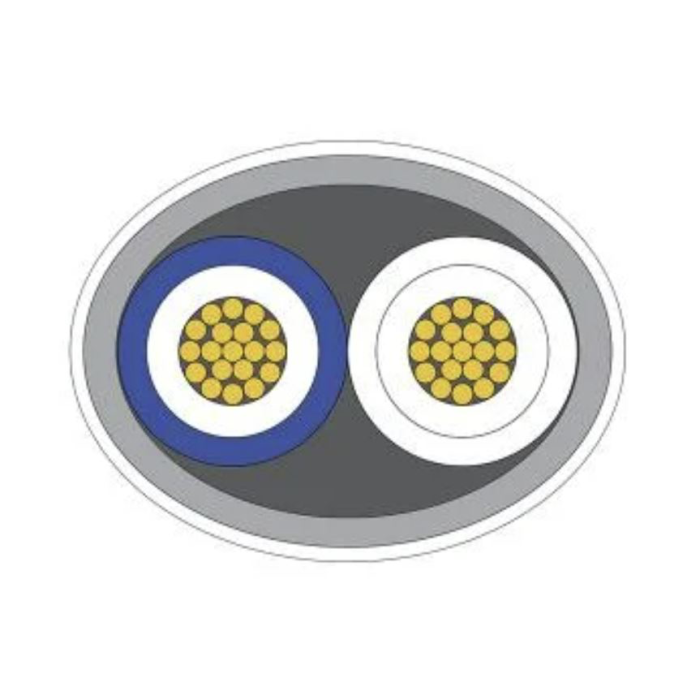

- Enhanced Durability: Engineered to withstand extreme conditions, the DXN2603 operates flawlessly within a temperature range of -55Ā° C to +200Ā° C. Its construction features silver-plated copper alloy conductors with PTFE over ePTFE insulation, and an overall shield of AWG 40(1) SPC braid for 92% minimum coverage, guaranteeing protection against environmental stresses and ensuring an extended service life.
- Lightweight and Compact Design: Reflecting Gore's commitment to innovation, the DXN2603 is designed for space and weight savings without compromising performance. It's 30% smaller and 50% lighter than standard cables, with a nominal outer diameter of just 2.5 mm (0.10 in) and a minimum bend radius of 12.6 mm (0.49 in), facilitating easier routing and installation in tight spaces.
- Standards Compliance and Environmental Responsibility: Meeting or exceeding NEMA-WC27500 Section 3.9 standards and tested for environmental resilience, the DXN2603 is not just a testament to performance but also to Gore's dedication to sustainability and compliance with stringent aerospace regulations.
Tailored for High-Stakes Applications
The GOREĀ® DXN2603 is ideally suited for a wide range of applications within the aerospace and defense sectors, including avionics/vetronics digital networks, cabin management systems, Ethernet backbones, HD streaming camera/video systems, and more. Its superior design and electrical characteristics make it the ideal choice for environments where failure is not an option.
Commitment to Excellence
By choosing the GOREĀ® DXN2603, you are not just selecting a cable; you are investing in a solution backed by W. L. Gore & Associates' legacy of reliability, innovation, and quality. The DXN2603 is a result of meticulous engineering, designed to provide optimal performance, ease of use, and longevity, ensuring your projects are powered by the best in cable technology.
Elevate Your Connectivity with GOREĀ®
The GOREĀ® DXN2603 Shielded Twisted Pair Cable is more than just a component; it's your pathway to unmatched performance, reliability, and efficiency. Embrace the future of aerospace and defense connectivity with Gore, and experience the difference that precision engineering can make in your applications. Contact a Gore representative today to discuss your specific needs and how the DXN2603 can elevate your project's performance to the next level.
