1594-480

SKU WM1594-480

Experience unparalleled performance with our 50 Ohm Light Weight Coaxial Cable (Part Number: 1594-480). Engineered with fluoropolymer construction, this cable offers reliable signal transmission and...

IN STOCK

149 M

Inventory Location

Arizona	0 M
Mexicali	0 M
Queretaro	0 M
Tennessee	149 M
Texas	0 M

Disclaimer

Imagery is for general reference and may not represent the actual part number. Not all products are available to every country or customer. Inventory updated daily. All stock is subject to prior sale.

Specifications

Item Description	Experience unparalleled performance with our 50 Ohm Light Weight Coaxial Cable (Part Number: 1594-480). Engineered with fluoropolymer construction, this cable offers reliable signal transmission and durability for demanding high-speed applications. Ideal
Price Unit	MFT
Capacitance	26 pF/Ft.
Velocity of Propigation (VP)	77
Manufacturer	Carlisle
Weight	235
Dielectric	Air spaced polytetrafluoroethylene (PTFE) tape
Dielectric Thickness	0.408
Outer Shield	Round silver plated copper having 95% minimum coverage
Jacket Type	Extruded fluorinated ethylene propylene (FEP)Color: Transparent brown
Impedance	50
Temp	-55
Shield	S - Single SPC Round
Conductor Count	1
Center Conductor	Silver Plated Copper

Product Overview

Introducing the 50 Ohm Light Weight Coaxial Cable: High-Speed Performance and Exceptional Quality

Scope:
Experience the pinnacle of cable technology with our 50 Ohm Light Weight Coaxial Cable, engineered with a fluoropolymer construction for superior performance. Ideal for high-speed applications, this cable is designed to meet rigorous industry standards, ensuring reliable and efficient signal transmission.

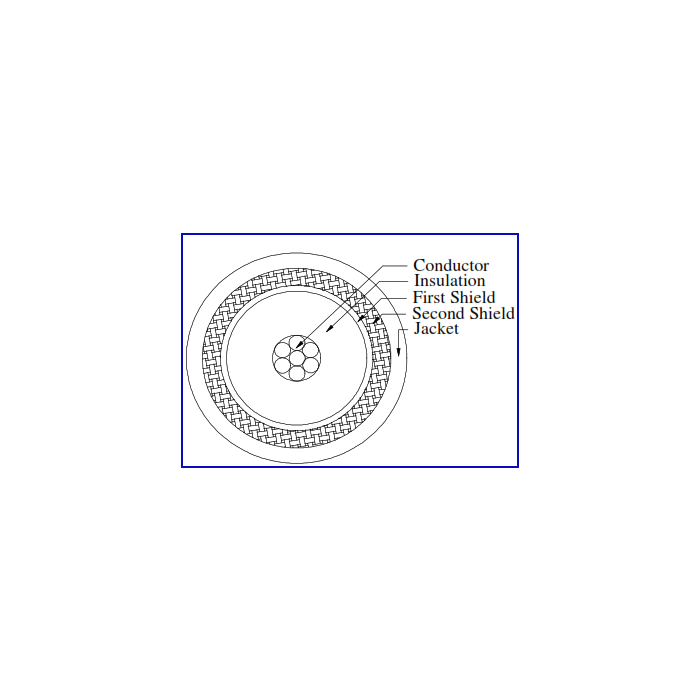

Construction Details:

Conductor: Comprised of 7 strands of .0483 silver-plated copper, the conductor guarantees excellent conductivity and durability.
Dielectric: Air-spaced polytetrafluoroethylene (PTFE) tape provides optimal insulation, maintaining signal integrity.
Inner Shield: Featuring flat silver-plated copper with a 95% minimum coverage for enhanced protection against electromagnetic interference.
Second Shield: Round silver-plated copper, also with a 95% minimum coverage, ensures additional shielding and signal clarity.
Jacket: Extruded fluorinated ethylene propylene (FEP) with a transparent brown color, offering robust protection and easy identification.

Dimensions:

Diameter: .145 ± .002 inches (conductor), .408 inches (inner shield), .420 ± .005 inches (outer shield), .448 inches (jacket), .488 ± .007 inches (final assembly).

Properties:

Temperature Range: -55°C to 200°C, suitable for extreme environments.
Impedance: 50 ± 2 ohms, providing consistent performance across a wide frequency range.
Velocity of Propagation: 77%, ensuring rapid signal transmission.
Capacitance: 26 pF/ft., minimizing signal loss.
Attenuation:
- 0.8 dB/100 ft. @ 50 MHz
- 1.2 dB/100 ft. @ 100 MHz
- 2.5 dB/100 ft. @ 500 MHz
- 3.5 dB/100 ft. @ 1,000 MHz
- 6.4 dB/100 ft. @ 3,000 MHz
- 8.5 dB/100 ft. @ 5,000 MHz
- 12.7 dB/100 ft. @ 10,000 MHz
Weight: Maximum of 235 lbs./1,000 ft., ensuring ease of installation and handling.

Manufactured by Thermax, this coaxial cable embodies precision and advanced engineering. The proprietary construction ensures unmatched performance, making it the ideal choice for demanding applications.
